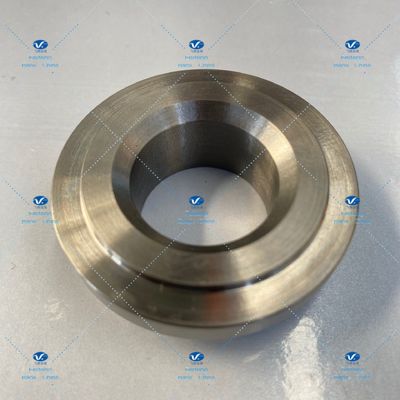

Gr5 ASTM B381 High Hardness Titanium Valve Seats
| Place of Origin | Baoji, Shaanxi, China |
|---|---|
| Brand Name | Feiteng |
| Certification | GB/T19001-2016 idt ISO9001:2015 GJB9001C-2017 |
| Model Number | Titanium Valve Seat |
| Minimum Order Quantity | To be negotiated |
| Price | To be negotiated |
| Packaging Details | Wooden case |
| Delivery Time | To be negotiated |
| Payment Terms | T/T |
| Supply Ability | To be negotiated |
Product Details
| Packaging | Wooden Case | Certification | GB/T19001-2016 Idt ISO9001:2015 GJB9001C-2017 |
|---|---|---|---|
| Material | Titanium Alloy | Item Name | Valve Seat |
| Origin | Baoji, Shaanxi, China | Grade | Gr5 |
| Port Of Delivery | Xi'an Port, Beijing Port, Shanghai Port, Guangzhou Port, Shenzhen Port | Technique | Forging |
| Specification | ASTM B381 | ||
| High Light | ASTM B381 titanium valve seats,Gr5 titanium valve seats,High Hardness valve seat ring |
||
Product Description
Titanium Valve Seat Gr5 ASTM B381 The Private Ordering Titanium Rings Titanium Forging
| Grade | Gr5 |
| Technique | Forging |
| Packaging | Wooden case |
| Port of delivery | Xi'an port, Beijing port, Shanghai port, Guangzhou port, Shenzhen port |
Two of the most useful properties of titanium are corrosion resistance and the highest strength-to-weight ratio of any metal. In its non-alloyed state, titanium is as strong as some steels, but 45% lighter. Titanium has similar chemical and physical properties to zirconium because both have the same number of valence electrons and belong to the same group of elements in the periodic table.
The valve seat is a detachable part inside the valve, which is used to support the valve core's full clearance and form a sealing pair. Generally, the valve seat diameter is the maximum flow diameter of the valve. For example, butterfly valve seat material is very extensive, all kinds of rubber, plastic, metal materials can be used as seat material.
The valve seat uses elastic sealing material and small actuating mechanism to obtain the bubble tight level seal. The compression seat sealing stress causes the material to be elastically deformed and squeezed into the rough surface of the metal parts to be used to block all the leakage paths. The permeability of the material is the basis for a small amount of leakage to the fluid.
If the material is too soft or cold deformation (creep) occurs under load, fillers such as glass fiber can be added to harden it. If used to make thin sheets, it can still meet the requirements of use, and can eliminate cold deformation or permanent deformation.
The seal must be carefully fixed to prevent rupture and air leakage due to differential pressure. The soft seat is bonded to the metal part, but it can not solve the problem completely. Because of the thermal shock, the bond will break and fail. Enough pressure drop will damage the bonding material.
Characteristic:
1) Good fluid compatibility, including expansion, hardness loss, permeability and degradation;
2) High hardness;
3) Permanent deformation;
4) The degree of recovery after load removal;
5) Pulping and compression strength;
6) Deformation before rupture;
7) Elastic modulus.
